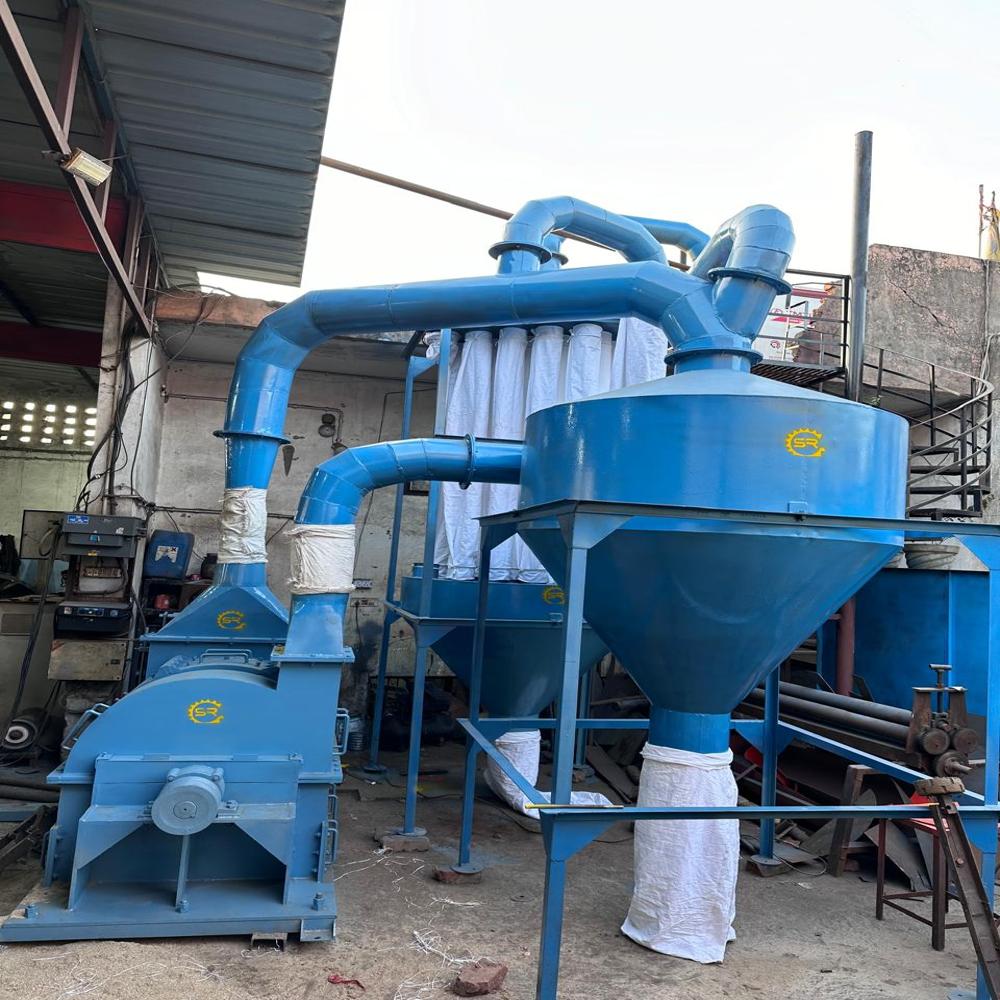

impact pulverlizer machine

An impact pulverizer (also spelled impact pulveriser) is a type of grinding machine used for fine and medium-fine size reduction of a wide range of materials. It operates based on impact force, where the material is pulverized by high-speed rotating hammers or beaters and is then classified or discharged once it reaches the desired fineness.

Basic Description:

An impact pulverizer is a mechanical grinding machine that uses high-speed impact and friction to reduce materials into fine powder. It's commonly used in industries such as chemical, mineral, food processing, pharmaceutical, and agriculture for grinding brittle and semi-hard materials.

Key Components:

1. Feeding Hopper

   • Where raw material is introduced into the machine.

2. Grinding Chamber

   • Contains hammers or beaters mounted on a high-speed rotor.

3. Rotor with Hammers/Blades

   • Spins at high RPM (typically 1,5005,000+ RPM) to apply impact force on materials.

4. Liner and Grinding Track

   • Helps grind material as it's impacted.

5. Whizzer Classifier (optional)

   • For separating fine and coarse particles to control final product fineness.

6. Discharge Outlet

   • Where the ground material exits.

7. Cyclone Separator and Dust Collector (in a complete system)

   • Collects fine particles and prevents dust emission.

Working Principle:

1. Material is fed into the grinding chamber.

2. High-speed rotating hammers strike the particles, breaking them down.

3. The broken material is thrown outward by centrifugal force and ground further by impact with the liner and other particles.

4. Finer material passes through a screen or classifier and exits the machine.

5. Coarse material is retained for further grinding.

Typical Applications:

• Spices (turmeric, chili, coriander, etc.)

• Minerals (limestone, barytes, gypsum, etc.)

• Chemicals (dyes, pigments, resins)

• Pharmaceuticals

• Food products (sugar, salt, grains)

• Fertilizers

Advantages:

• Fine and uniform grinding.

• Handles a wide range of materials.

• Easy operation and maintenance.

• Continuous operation possible.

• Can be integrated with classifiers for precise fineness control.

Limitations:

• Not suitable for sticky or fibrous materials.

• Generates heat during operation (may affect heat-sensitive materials).

• High wear on hammers and liners; requires regular maintenance.

• Noise and dust generation (requires proper enclosure or dust collection).
